OptimScan Q12 / Q9
High-Precision Fixed 3D Inspection for Manufacturing and Quality Control

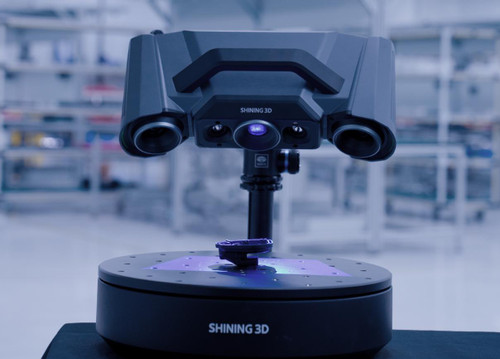

The OptimScan Q12 and Q9 are high-precision industrial 3D inspection scanners designed for applications where measurement accuracy, repeatability, and detailed surface capture are critical. Unlike handheld scanners that prioritize mobility and flexibility, the OptimScan platform is engineered as a fixed structured-light inspection system capable of capturing extremely fine geometric detail for dimensional analysis, reverse engineering, and quality control workflows.
Built around high-resolution industrial cameras, blue LED structured-light projection, and advanced reconstruction algorithms, the OptimScan series delivers metrology-grade performance suitable for manufacturing environments where micron-level precision is required. From machined components and molds to stamped parts and electronic assemblies, the system is designed to generate highly accurate digital representations for inspection and verification.
Certified Metrology Accuracy
Accuracy is the foundation of the OptimScan platform.
The OptimScan Q12 and Q9 are capable of achieving up to 0.005 mm accuracy in their smaller scan range configuration, making them suitable for demanding inspection applications where even minor dimensional deviations must be identified and analyzed. Every system is tested in SHINING 3D's ISO/IEC 17025 accredited laboratory and verified according to internationally recognized VDI/VDE 2634 Part 2 and ISO 10360 standards.
This level of traceable measurement performance makes the OptimScan series an excellent solution for manufacturers requiring repeatable inspection data for quality assurance, process validation, and production verification.
Dual Scan Range Technology
One of the standout features of the OptimScan Q12 and Q9 is their dual scan range design.
With a single click, users can switch between a large field of view for efficient coverage and a smaller field of view optimized for capturing fine details. Unlike many fixed scanners that require manual optical adjustments, the OptimScan series allows rapid transitions between scan ranges without changing focal lengths or aperture settings.
The larger scan area improves efficiency when capturing larger components, while the smaller range maximizes detail resolution for intricate features such as holes, connectors, sharp edges, and precision-machined surfaces.
Because data from both ranges can be seamlessly combined within the software, users can efficiently scan large parts while still preserving critical detail in important inspection regions.
Four Industrial Cameras for Maximum Detail
The OptimScan Q12 utilizes four 12.3-megapixel industrial cameras, while the Q9 utilizes four 9-megapixel cameras. This multi-camera architecture allows the system to capture highly detailed surface information while maintaining excellent accuracy across the entire scan volume.
The additional camera coverage helps improve data reliability when scanning complex geometries, deep features, sharp transitions, and difficult inspection areas. Combined with advanced reconstruction algorithms, the result is a dense, highly detailed point cloud suitable for professional inspection workflows.
Monocular-Stereo Fusion (MSF) Technology
OptimScan Q12 and Q9 feature SHINING 3D's Monocular-Stereo Fusion (MSF) technology, which improves data completeness when scanning challenging geometry.
Industrial components frequently contain corners, intersections, recessed features, and transition areas that can be difficult for traditional structured-light systems to capture completely. MSF technology increases coverage in these areas, reducing missing data and improving overall model integrity.
For inspection workflows, more complete data means fewer rescans and greater confidence in measurement results.
High-Speed Scanning with Intelligent Exposure Control
Despite its focus on accuracy, the OptimScan platform is designed for efficient inspection workflows.
A built-in dual-chip processing architecture enables rapid image acquisition and reconstruction, with individual scans captured in less than one second. Multiple exposure modes, including intelligent automatic exposure, help optimize data collection across a wide range of surface conditions while reducing operator intervention.
This combination of speed and precision helps manufacturers move quickly from data acquisition to inspection without sacrificing measurement quality.
Flexible Manual, Semi-Automated, and Automated Operation
The OptimScan platform is designed to grow alongside inspection requirements.
For manual scanning workflows, the system can be mounted on a tripod and positioned as needed around the object. For higher throughput applications, it can be paired with automatic turntables that enable repeatable multi-angle scanning with minimal operator involvement.
For production environments requiring maximum efficiency, the scanner can also be integrated with robotic inspection systems to create fully automated measurement workflows capable of scanning, inspection, and report generation with minimal human interaction.
Inspection-Ready Software Ecosystem
The OptimScan series integrates with a variety of professional inspection and reverse engineering software solutions.
Compatibility includes:
- SHINING3D Inspect
- PolyWorks
- Geomagic Control X
- EXModel Pro
- Geomagic Design X
These platforms support CAD comparison, GD&T analysis, dimensional verification, reporting, and reverse engineering workflows commonly used throughout manufacturing and quality assurance environments.
Ideal Applications
The OptimScan Q12 and Q9 are particularly well suited for:
- Precision machined component inspection
- Mold and tooling verification
- First article inspection (FAI)
- Stamped sheet metal analysis
- Electronics manufacturing
- Aerospace component inspection
- Automotive quality control
- Reverse engineering
- Automated production inspection
- Research and development
The system's combination of high accuracy, flexible automation options, and detailed data capture makes it a powerful solution for organizations where measurement quality directly impacts manufacturing performance.
Technical Specifications
| Specification | OptimScan Q12 | OptimScan Q9 |
|---|---|---|
| Camera Resolution | 4 × 12.3 MP | 4 × 9 MP |
| Light Source | Blue LED | Blue LED |
| Accuracy (Small Range) | 0.005 mm | 0.005 mm |
| Accuracy (Large Range) | 0.015 mm | 0.015 mm |
| Large Scan Range | 430 × 300 mm | 430 × 300 mm |
| Small Scan Range | 160 × 110 mm | 160 × 110 mm |
| Point Distance (Large Range) | 0.10 mm | 0.11 mm |
| Point Distance (Small Range) | 0.04 mm | 0.05 mm |
| Working Distance | 590 mm / 210 mm | 590 mm / 210 mm |
| Depth of Field | 300 mm / 60 mm | 300 mm / 60 mm |
| Weight | 3.5 kg | 3.5 kg |
| Certification | VDI/VDE 2634 & ISO 10360 Verified | VDI/VDE 2634 & ISO 10360 Verified |
Specifications sourced from SHINING 3D official documentation.
Why Choose the OptimScan Q12 / Q9?
For manufacturers and inspection professionals who prioritize precision over portability, the OptimScan Q12 and Q9 offer a compelling solution. By combining certified metrology accuracy, high-resolution industrial imaging, dual scan ranges, advanced MSF technology, and automation-ready workflows, the system delivers the detailed measurement data required for modern quality control and reverse engineering applications.
When micron-level accuracy matters, the OptimScan series is designed to provide the confidence and repeatability demanded by professional inspection environments.
